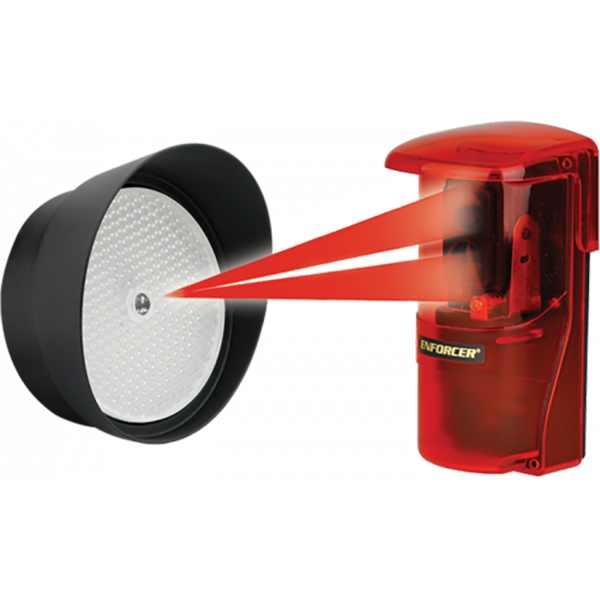

This sensor works well for our truck scale intercom application, or anywhere that you need vehicle or person detection.
Key Features:
- Polarized sensor is immune to shiny objects: Triggers only when correctly reflected light is detected
- Weatherproof (IP55) construction
- Anti-condensation housing
- 12-30V DC/AC 60Hz, 100mA
- Up to 33ft (10m) sensing range

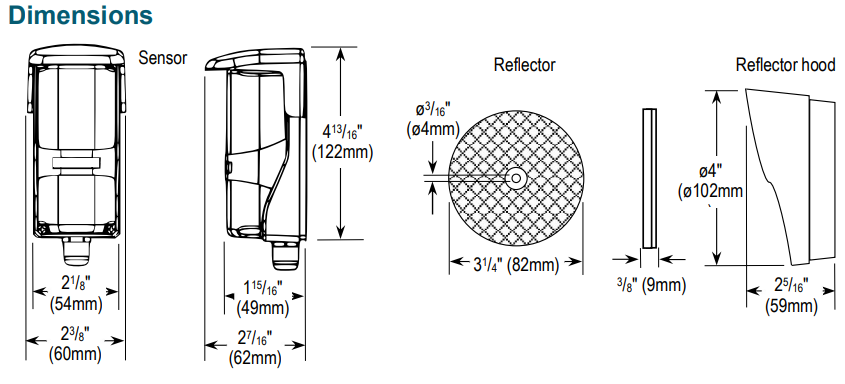

- Round, ø31/4? (82mm) reflector
- Form C relay: 0.5A@30VAC/VDC
- Beam status LED
- N.C. Tamper switch, 500mA@30VAC/VDC
Upgrade your monitoring system with this highly adaptable and user-friendly sensor, designed for reliability in various environments.

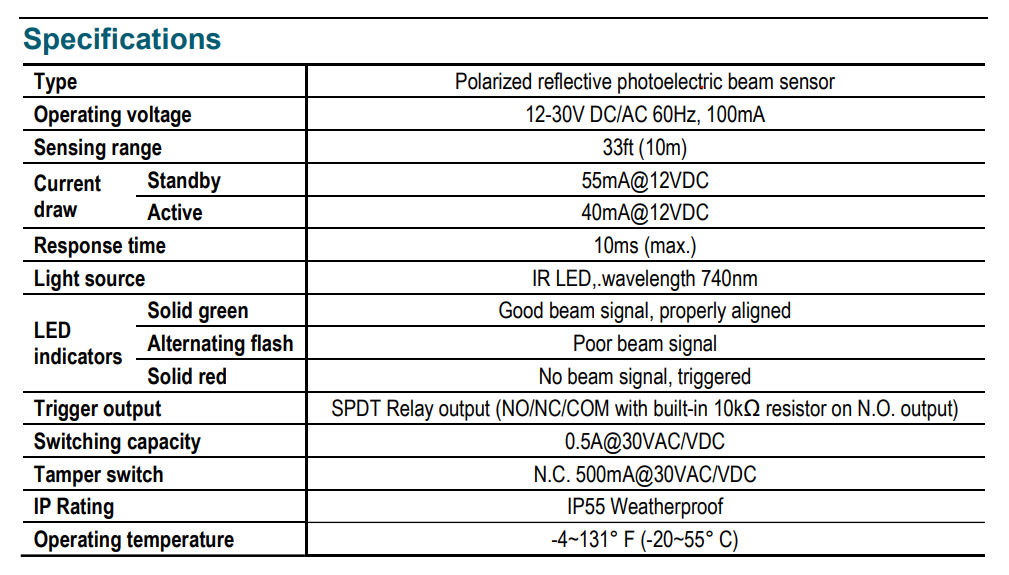

Full Technical Specifications
General
- Type: Polarized reflective photoelectric beam sensor
- Sensing Range: Up to 33' (10 m)
- Response Time: 10 ms (max.)
Power
- Operating Voltage: 12–30V DC/AC 60Hz, 100 mA
- Current Draw (Standby): 55 mA @ 12VDC
- Current Draw (Active): 40 mA @ 12VDC
LED Indicators
- Solid Green: Good beam signal, properly aligned
- Alternating Flash: Poor beam signal
- Solid Red: No beam signal, triggered

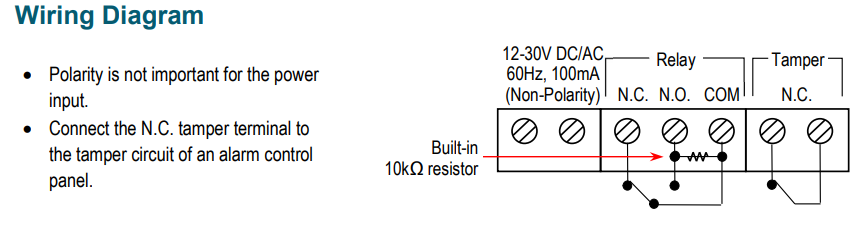

Trigger Output
- Output Type: SPDT relay output (NO/NC/COM with built-in 10kO resistor on N.O. output)
- Switching Capacity: 0.5A @ 30VAC/VDC
Alarm Output
- Output Type: SPDT relay output (NO/NC/COM)
- Switching Capacity: 500 mA @ 30VAC/VDC
- Tamper Switch: N.C., 500 mA @ 30VAC/VDC
Environmental
- IP Rating: IP55 weatherproof
- Operating Temperature: -4 to 131°F (-20 to 55°C)
