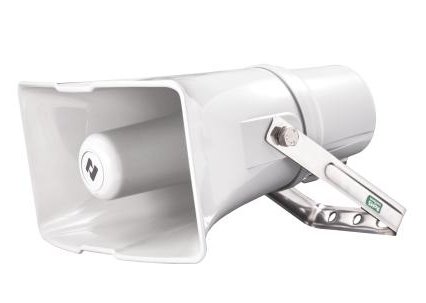

The Noise-Cancelling IP Horn Speaker & Microphone pairs a horn-loaded driver with a Class D amplifier built directly into the enclosure, all powered over a single PoE Ethernet cable. The horn geometry concentrates sound energy for high SPL and tight directivity, delivering up to 120 dBA peak output — well suited to installations where the speaker sits at a distance from listeners and physical space for a horn-style enclosure isn't a constraint.
Because the amplifier lives in the speaker itself, there's no central amplifier rack and no traditional speaker loop to design around. Each unit is individually addressable over IP, can be grouped into zones across a LAN, WAN, or the internet, and reports its own health — network faults and electronics faults alike — to your central management platform or third-party systems via SNMP or Syslog.
The built-in microphone adds speaker-as-mic functionality: automatic volume control, self-checking diagnostics, half-duplex communication for traditional broadcast paging, and ambient listening. Combined with ONVIF support, the unit can be auto-discovered by a VMS, receive messages, and provide talkback — all without extra hardware.
Because the amplifier lives in the speaker itself, there's no central amplifier rack and no traditional speaker loop to design around. Each unit is individually addressable over IP, can be grouped into zones across a LAN, WAN, or the internet, and reports its own health — network faults and electronics faults alike — to your central management platform or third-party systems via SNMP or Syslog.
The built-in microphone adds speaker-as-mic functionality: automatic volume control, self-checking diagnostics, half-duplex communication for traditional broadcast paging, and ambient listening. Combined with ONVIF support, the unit can be auto-discovered by a VMS, receive messages, and provide talkback — all without extra hardware.
Ideal Applications
- Roads & Tunnels — Built to cut through high ambient noise and control reflections that would otherwise wreck speech intelligibility in enclosed, reflective spaces.
- Truck Scales — Operators and drivers can actually hear each other over idling diesel engines, no button-pressing required.
- Industrial Sites — Rated IP66 and IK08 for dust, water, and impact resistance, with a wide -40° to 70°C operating range for demanding plant environments.
- Perimeter & Building Security — Talkback, ambient listening, and ONVIF/VMS integration make it a natural fit for asset protection and perimeter monitoring alongside existing camera systems.
Key Features
- Crystal-clear audio presence via horn-loaded Class D amplifier
- Protected from dust and water — IP66 rated enclosure
- Speaker-as-mic technology for two-way audio
- External RJ45 connection for straightforward network wiring
- Max SPL of 120 dBA at 1 meter
- Ideal for micro-zone PA systems with a limited speaker count
- Individually addressable and monitored over IP
- ONVIF compatible for VMS auto-discovery and talkback
- Remote software upgrade and configuration
- Relay output for controlling doors, signal lamps, or gates
- Powered entirely over the network cable via PoE
- Advanced supervision: network tests, tone tests, status reporting
Call 888-298-9489 — we'll help make sure you get every component right the first time.
Frequently Asked Questions
Do I need a central amplifier or speaker loop for this system?
No. The amplifier is built into each speaker, so there's no central amplifier unit or traditional speaker loop required. Speakers can still be grouped into zones across a network or the internet.
How is the unit powered?
Entirely over the network cable via PoE (IEEE 802.3af, Class 3, 6.49–12.95 W), eliminating the need for separate power runs.
Is it suitable for outdoor or industrial installation?
Yes. It carries an IP66 rating against dust and water ingress, an IK08 impact rating, and operates across a -40° to 70°C temperature range.
Full Technical Specifications
General
- Codecs: G.711, G.722
- Effective frequency range: 275–7000 Hz
- Continuous SPL (6 dB crest factor): 115 dBA
- Max. SPL @ 1 kHz / 1 m: 120 dBA
- Output power (continuous / peak): 7.5 W / 30 W
- IP rating: IP66
- Dimensions (W x H x D): 253 x 152 x 309 mm
- Weight: 1.85 kg
- Material / color: ABS, grey
- Mounting bracket: Stainless steel, grade 304
Networking & Protocols
- Protocols: IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, ONVIF, CCoIP®, NTP
- LAN protocols: Power over Ethernet (IEEE 802.3 a–f); Network Access Control (IEEE 802.1x)
- Management & operation: HTTP/HTTPS web configuration; DHCP and static IP + IC-EDGE; remote automatic software upgrade; centralized monitoring
- Advanced supervision functions: Network test, tone test, status reports
- SIP support: RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
- DTMF support: RFC 2833, RFC 2976 (SIP info)
Hardware
- Ethernet connector: 1 x RJ45
- All other connectors: Tool-less, spring-loaded, vibration-proof terminals
- General inputs and outputs: 1x GPIO; 1x mic/line input
- Output: 12 mA as LED drivers
- Change-over relay (NO+COM): 48V nominal, max. 100VDC, 70VAC
- Power options: PoE
- PoE (Power over Ethernet): IEEE 802.3af standard, Class 3 (6.49–12.95 W)
- Max current consumption: 0.35 A
- Secondary speaker line out: 8 Ohm
Environment & Compliance
- Operating temperature range: -40° to 70°C / -40° to 158°F
- Storage temperature range: -40° to 70°C / -40° to 158°F
- Relative humidity: < 95%, non-condensing
- EMC: CE and FCC Part 15
- IP rating: IP66
- IK rating: IK08
Other Specifications
- System boot time: Under 10 seconds
- IP address information: Speaker IP address available on input short
- Country of manufacture: Norway
- Warranty: 2-year standard warranty
